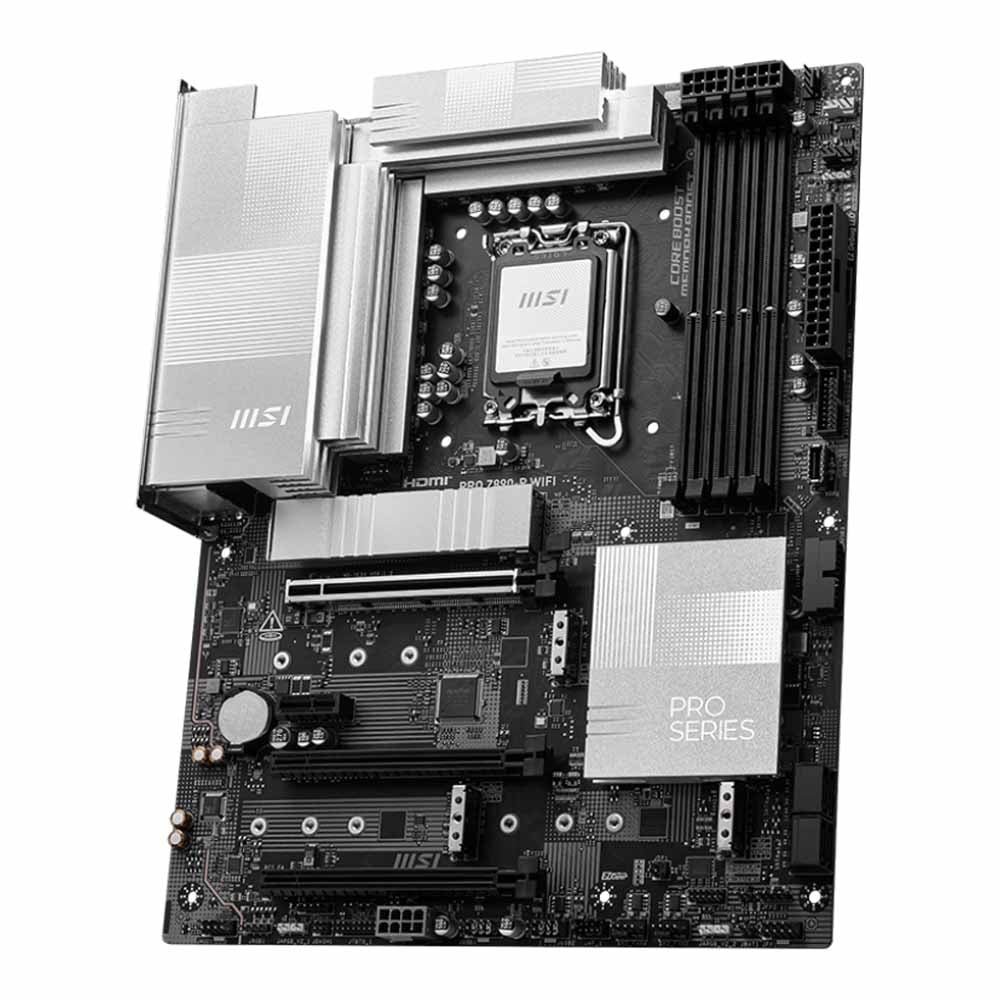

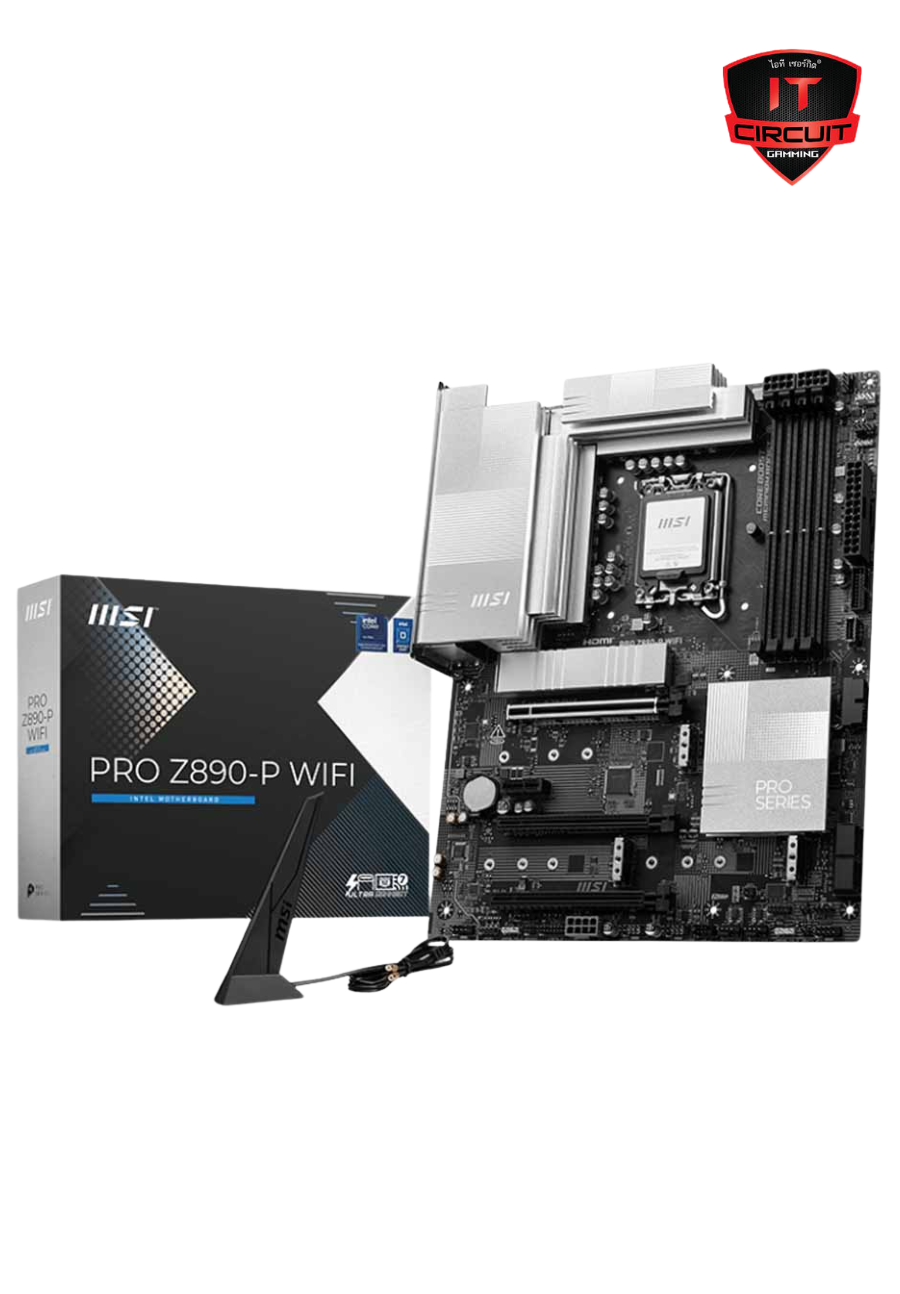

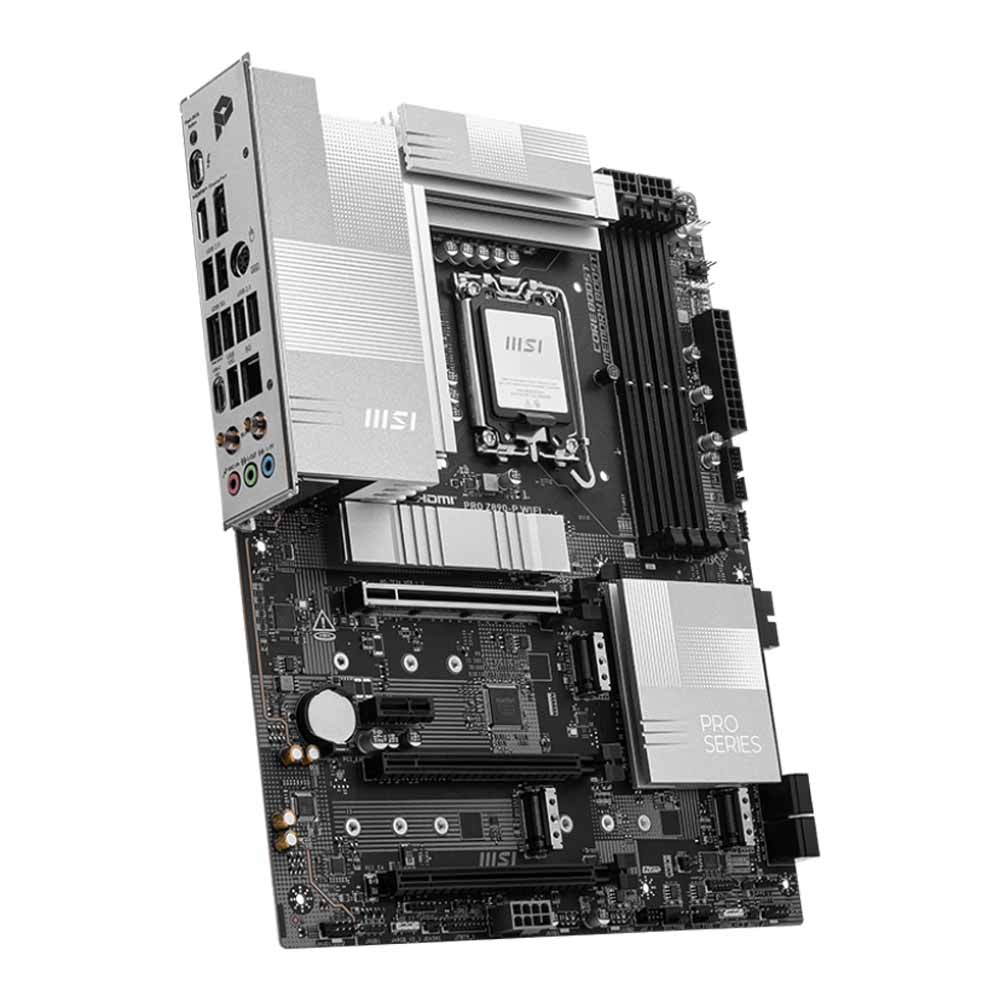

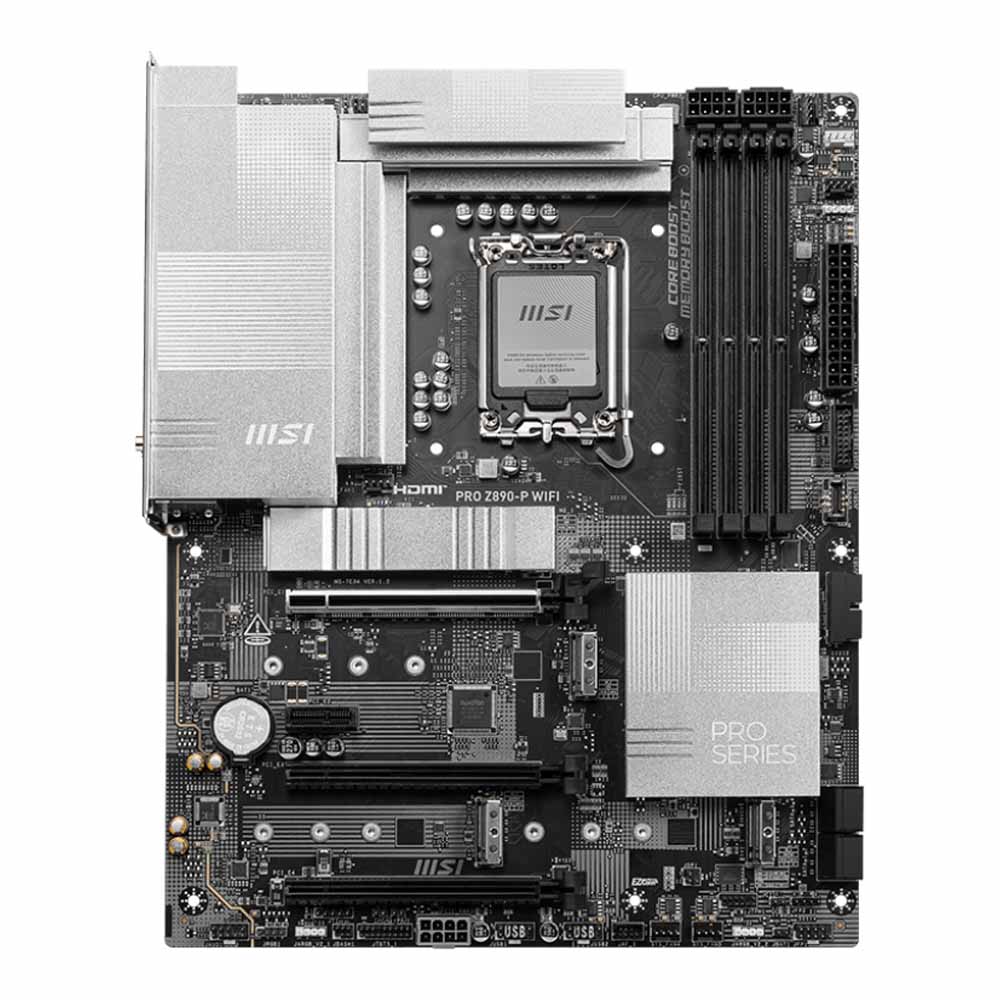

MAINBOARD (เมนบอร์ด) MSI PRO Z890-P WIFI (INTEL SOCKET 1851 DDR5 ATX) SN3110251B230Y

PRO Z890-P WIFI (DDR5)

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851

1851

Intel Z890

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

9200

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

N/A

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

3 x PCI-E x16 slot (Qty)
1 x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCIe 5.0

4 x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4 x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

NVMe, SATA

4

4 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
2 x USB 5Gbps Type A (Rear)
4 x USB 5Gbps Type A (Front)
1 x USB 10Gbps Type A (Rear)
1 x USB 10Gbps Type C (Rear)
1 x USB 20Gbps Type C (Front)

1 x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

1 x Thunderbolt5 card connector(JTBT5, support RTD3)
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x PUMP_SYS Fan
5 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports

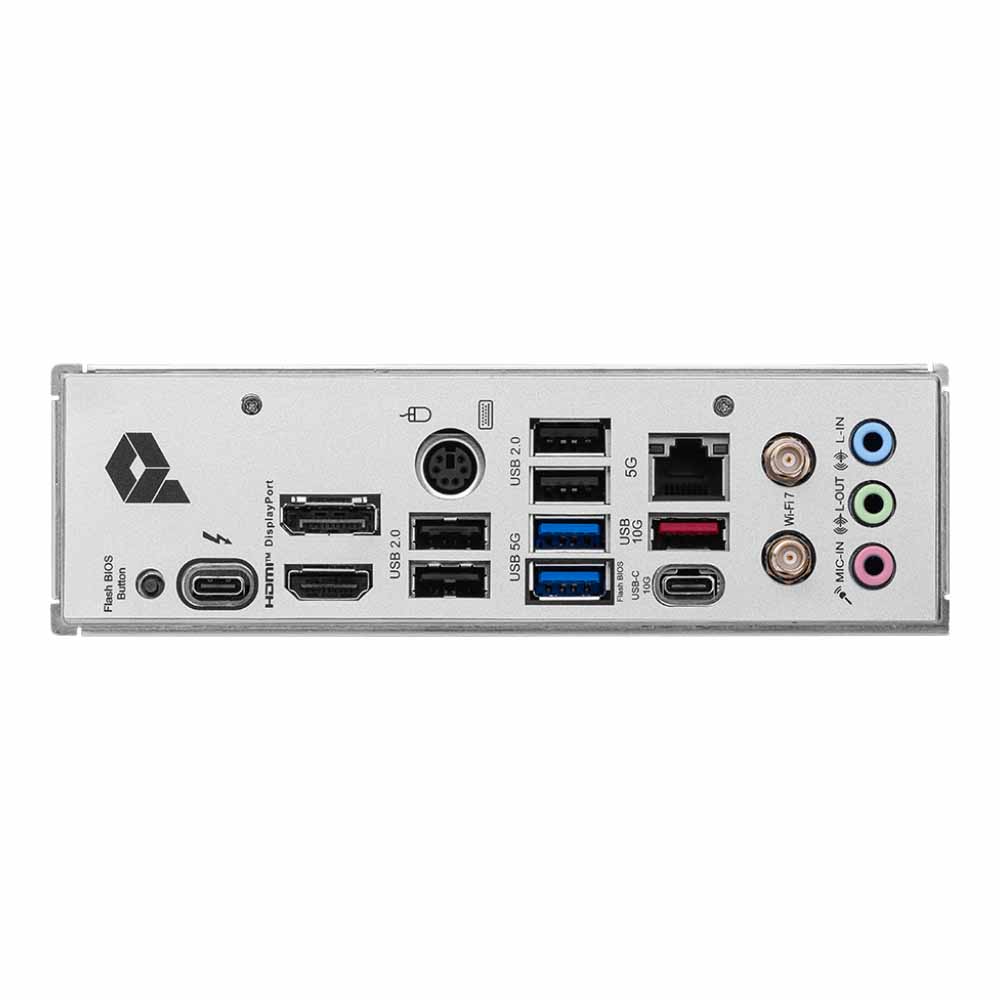

4 x USB 2.0
2 x USB 5Gbps Type-A
1 x USB 10Gbps Type-C
1 x USB 10Gbps Type-A
1 x Thunderbolt™ 4 40Gbps (Type-C)
1 x HDMI™
1 x DisplayPort
Audio Connectors
5G LAN
Wi-Fi / Bluetooth
Mouse / Keyboard
Flash BIOS Button

Realtek® 8126 5Gbps LAN

Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

ATX

N/A

N/A

LED FEATURE
4 x EZ Debug LED

N/A

Support for Windows® 11 64-bit

N/A
