| Brand |
MSI |
| Model |

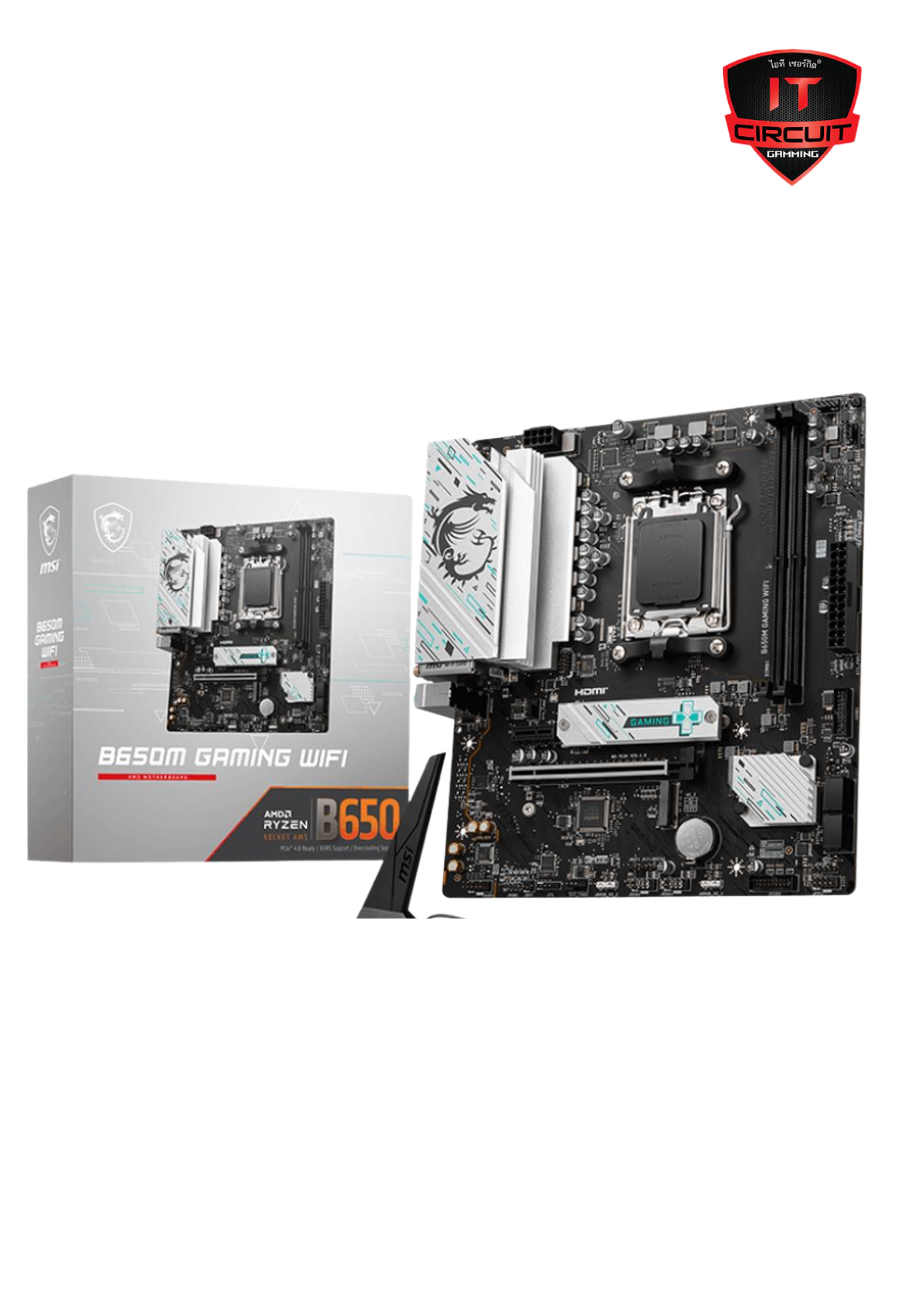

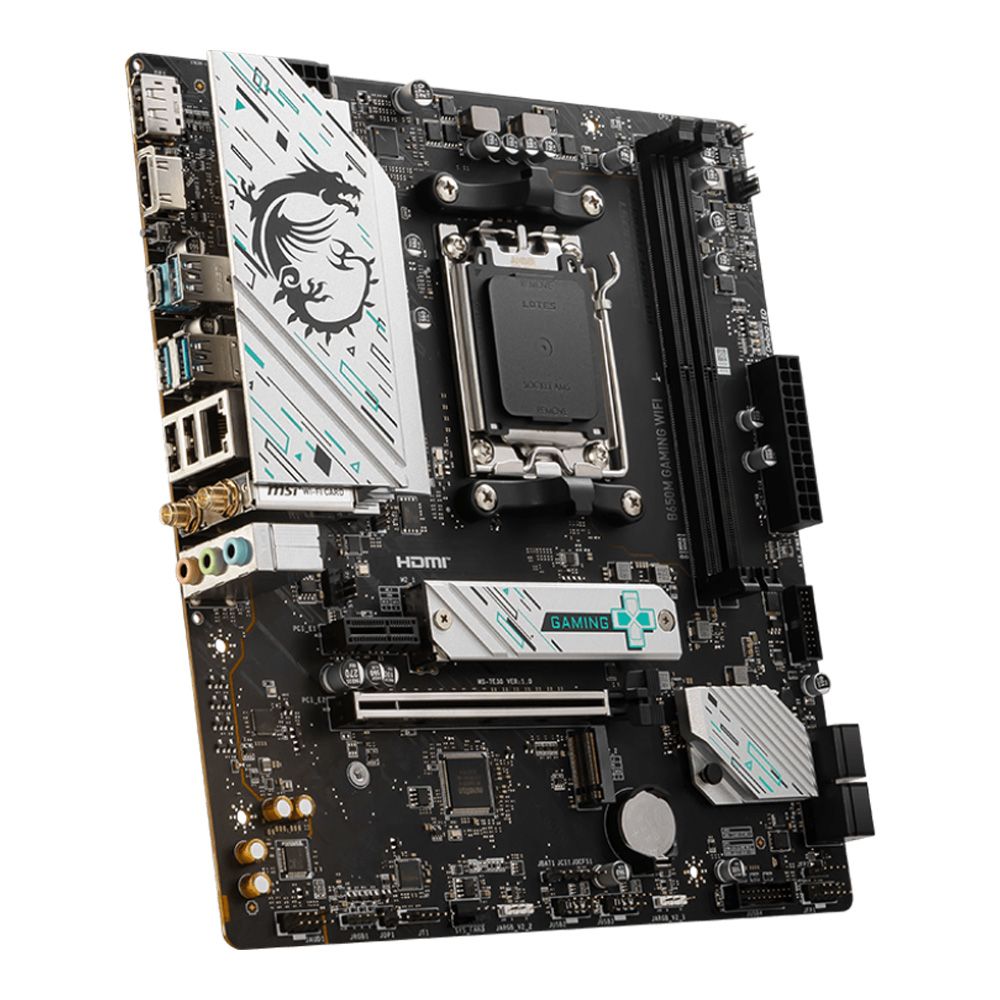

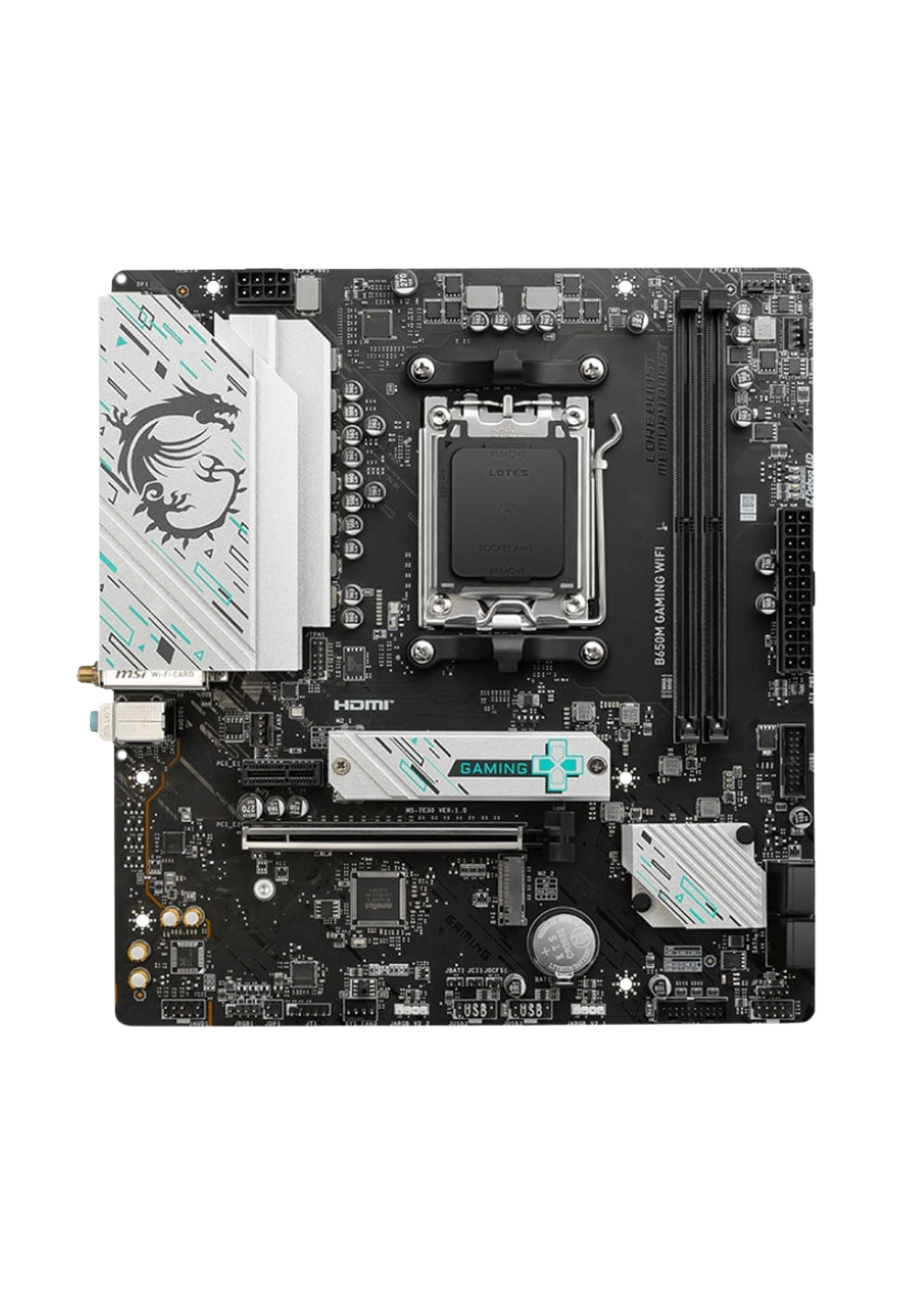

B650M GAMING WIFI (DDR5)
|
| CPU Support |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
|
| CPU Brand |
AMD
|
| Socket |
AM5
|
| Chipset |
AMD B650
|
| Memory Support |
2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
|
| Maximum Memory Bus |
7800
|
| Graphics |
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
| Multi Graphic Support |
N/A
|
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
| Expansion Slots |
1x PCI-E x16 slot (Qty)
Supports x16/x1
• Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
|
| Maximum PCIe Version |
PCIe 4.0
|
| Storage |
2 x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4 x SATA 6G (Qty)
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
|
| M.2 Storage Type Support |
NVMe
|
| M.2 Slot |
2
|
| USB |
2 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
3 x USB 5Gbps Type A (Rear)
1 x USB 5Gbps Type C (Rear)
4 x USB 5Gbps Type A (Front)
|
| Internal I/O Connectors |
1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
3 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
2 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
|

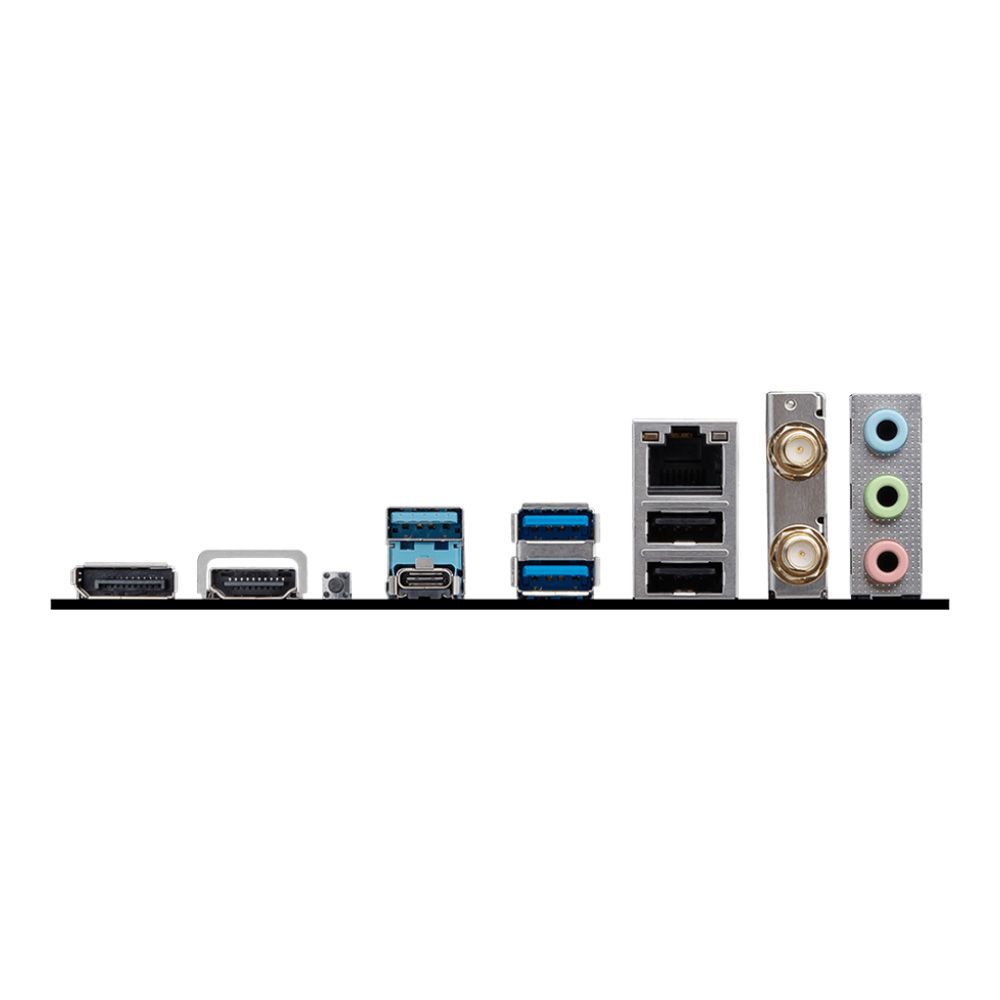

| Back Panel Connectors |
2 x USB 2.0
3 x USB 3.2 Gen 1 5Gbps (Type-A)
1 x USB 3.2 Gen 1 5Gbps (Type-C)
1 x DisplayPort
1 x HDMI™
Audio connectors
2.5G LAN
Wi-Fi / Bluetooth
Flash BIOS Button
|
| LAN |
Realtek® RTL8125BG 2.5Gbps LAN
|
| Wireless Data Network |
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
|
| Form Factor |
Micro ATX
|
| H/W Monitoring |
N/A
|
| BIOS |
N/A
|
| Special Features |
LED FEATURE : 4x EZ Debug LED
|
| Software Features |
N/A
|
| Operating System Support |
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
| Package Contents |
N/A
|
| Package Dimension |
(W x D x H) 26.47 x 29.39 x 6.78 cm |
| Gross Weight |
1.36 KG |
| Volume |
7173.35 cm3 |
| Warranty |
3Y |
