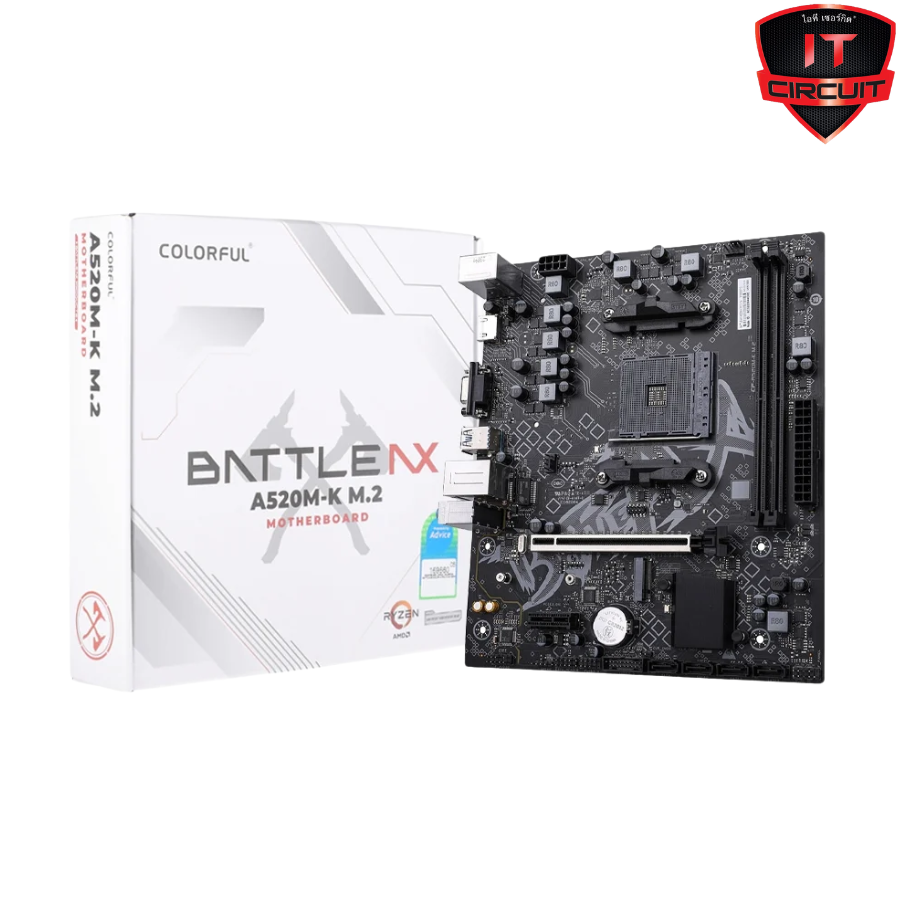

MAINBOARD (เมนบอร์ด) (AM4) COLORFUL BATTLE-AX A520M-K M.2 V14 DDR4 SN29925T110H

BATTLE-AX A520M-K M.2 V14 DDR4

Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard

(* Please visit www.colorful.cn for the latest memory compatibility list)

AMD

AM4

AMD A520

2 x DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory)

- Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Supports dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

3600

1 x HDMI 2.0 interface, Supports up to 4K 60Hz resolution
1 x VGA interface

None

Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

1 x PCIe 3.0 x16 slot
1 x PCIe 3.0 x1 slot

PCIe 3.0

1 x M.2 slot and 4 SATA 6Gb/s hard disk interfaces
- M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel)

4 x SATA 6Gb/s hard disk interfaces

Supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices

NVMe, SATA

1

Rear I/O :
2 x USB 2.0 interfaces
4 x USB 3.2 Gen 1 Type-A interfaces

On board:
1 x USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

1 x CPU fan pin
1 x System fan pin
1 x USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
1 x Front audio pin
1 x Front panel pin
1 x Speaker pin
1 x Clear CMOS jumper
1 x BIOS burner pin
1 x Debug light pin
1 x USB live control jumper

2 x USB 2.0 interfaces
4 x USB 3.2 Gen 1 Type-A interfaces
1 x HDMI 2.0 interface, Supports up to 4K 60Hz resolution
1 x VGA interface
1 x PS/2 interface
1 x Gigabit network interface
3 x Audio interfaces (audio input/audio output/microphone)

1 x RTL8111H Gigabit Network Card

None

Micro ATX

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

128M UEFI, support multiple languages

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

N/A

Windows 10 / 11

N/A

3Y
