| Brand |
ASROCK |
| Model |

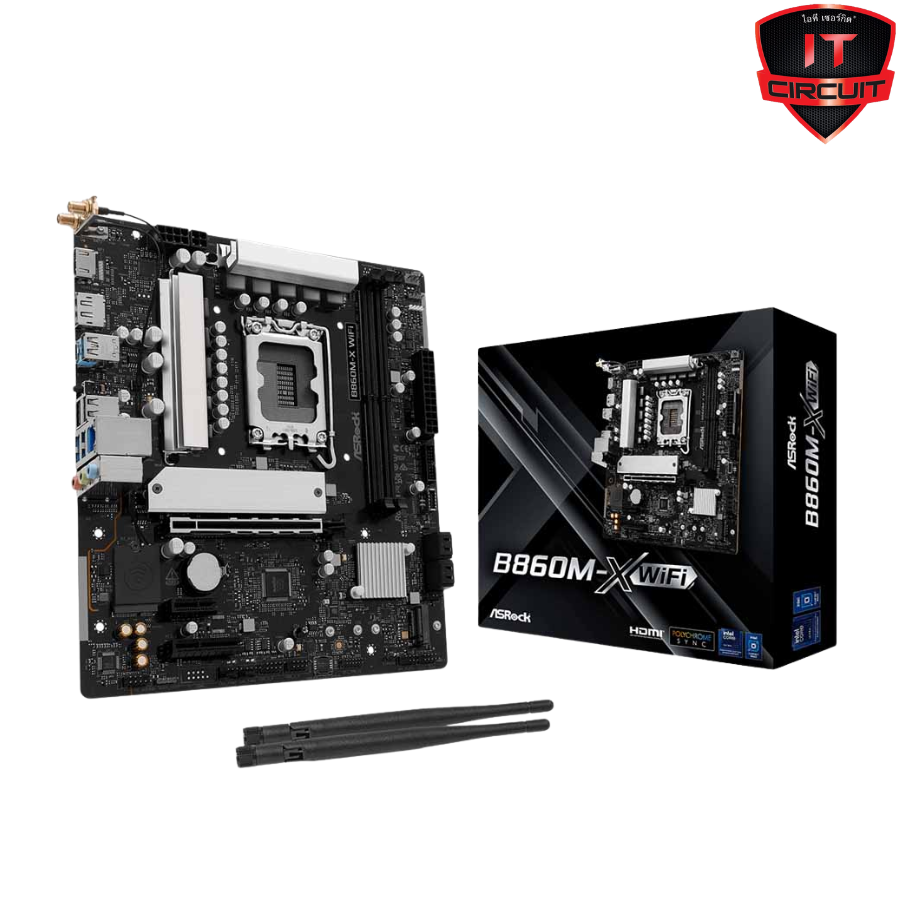

B860M-X WiFi DDR5
|
| CPU Support |
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
- Integrated NPU for dedicated AI acceleration
|
| CPU Brand |
Intel |
| Socket |
1851
|
| Chipset |
Intel B860
|
| Memory Support |
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 9066+(OC)*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0x
*1DPC 1R Up to 9066+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
|
| Maximum Memory Bus |
9066
|
| Graphics |
Intel® Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
| Multi Graphic Support |
N/A
|
| Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Expansion Slots |
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
1 x PCIe 4.0 x1 Slot (PCIE2)*
1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
*Supports NVMe SSD as boot disks
|
| Maximum PCIe Version |
PCIe 4.0
|
| Storage |
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
| M.2 Storage Type Support |
NVMe
|
| M.2 Slot |
2
|
| USB |
CPU:
1 x USB 3.2 Gen2x2 Type-C (Rear)
Chipset:
1 x USB 3.2 Gen1 Type-C (Front)
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
*All USB ports support ESD Protection
|
| Internal I/O Connectors |
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
2 x Addressable LED Headers**
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
|
| Back Panel Connectors |
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
3 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
|
| LAN |
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
|
| Wireless Data Network |
- 802.11axe Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3
- Supports MU-MIMO
*The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
|
| Form Factor |
Micro ATX
|
| H/W Monitoring |
N/A
|
| BIOS |
256Mb AMI UEFI Legal BIOS with GUI support
|
| Special Features |
Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 7+1+1+1+1 Power Phase
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
|
| Software Features |
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Operating System Support |
Microsoft Windows 11 64-bit
|
| Package Contents |
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Screw for M.2 Socket
1 x Standoff for M.2 Socket
|
| Warranty |
3Y
|
