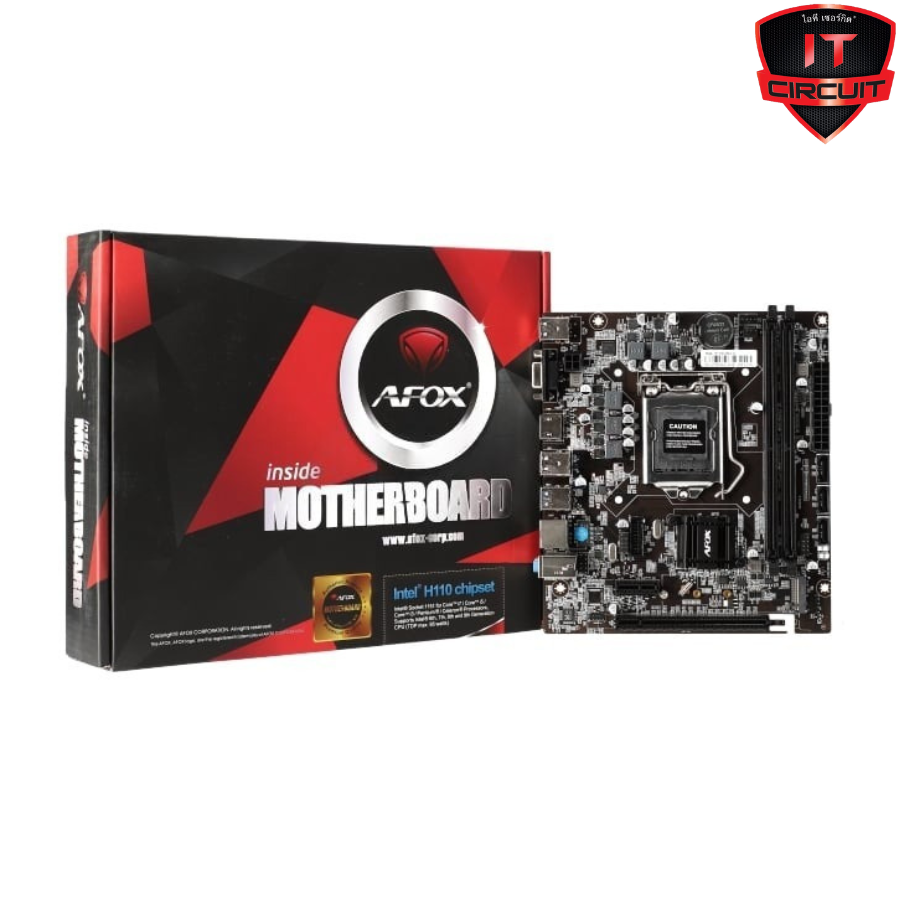

MAINBOARD (เมนบอร์ด) (1151) AFOX IH110D4-MA2-V4 DDR4 SN27925T110H

H110D4-MA2-V4 DDR4

Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)

Intel

1151

Intel H110

2 x Memory Slots (Max. capacity of system memory 32GB)
Dual Channel DDR4 2133 / 2400(7th) MHz

2133

Integrated Graphics Processor-Intel® HD Graphics support

N/A

Realtek 662 on board, Supports 6-channel audio-out

1 x PCI Express x16 3.0 slot
1 x PCI Express x1

PCIe 3.0

1 x M.2
3 x SATA3

NVMe, SATA

1

Back Panel
2 x USB 3.0 Ports
4 x USB 2.0 Ports

ON-Board
1 x USB 2.0 pinheader (supports additional 2 USB 2.0)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0)

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x LPC DEBUG
1 x  TPM

1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

Realtek RTL8111 Gigabit Ethernet on board
Wake-On-LAN

None

Micro ATX

N/A

UEFI BIOS

N/A

N/A

Microsoft Windows 8, 10 compatible

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
