| Brand |
ASROCK |
| Model |

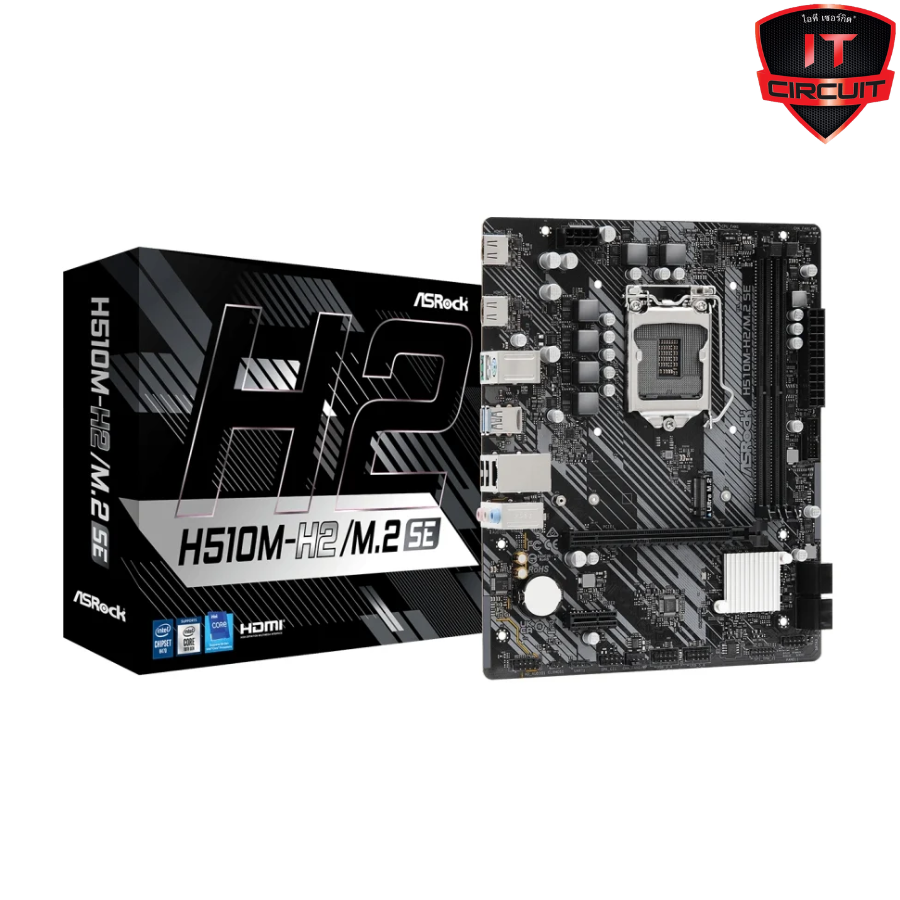

H510M H2/M.2 SE
|
| CPU Support |
- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
- Supports Intel® Turbo Boost Max 3.0 Technology
|
| CPU Brand |
Intel
|
| Socket |
1200
|
| Chipset |
Intel H470
|
| Memory Support |
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
* 11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| Maximum Memory Bus |
3200
|
| Graphics |
- 2 x HDMI
Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Graphics specifications may vary between CPU types.
|
| Multi Graphic Support |
None
|
| Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| Expansion Slots |
Intel® 11th Gen & 10th Gen Processors:
- 1 x PCIe 4.0 x16 Slot (PCIE1)*
Intel® H470 Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)**
* Intel® 11th Gen Processors support PCIe 4.0 x16
Intel® 10th Gen Processors support PCIe 3.0 x16
** Supports NVMe SSD as boot disks
|
| Maximum PCIe Version |
PCIe 4.0
|
| Storage |
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
|
| M.2 Storage Type Support |
NVMe
|
| M.2 Slot |
1
|
| USB |
6 x USB 3.2 Gen1 (4 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
|
| Internal I/O Connectors |
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1~2/WP support the fan power up to 2A (24W).
CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.
|
| Back Panel Connectors |
1 x PS/2 Mouse/Keyboard Port
2 x HDMI Ports
2 x USB 2.0 Ports
4 x USB 3.2 Gen1 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
|
| LAN |
Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H
|
| Wireless Data Network |
None
|
| Form Factor |
Micro ATX
|
| H/W Monitoring |
N/A
|
| BIOS |
128Mb AMI UEFI Legal BIOS with GUI support
|
| Special Features |
Rock-Solid Durability
- 4 Power Phase
EZ Update
- ASRock Auto Driver Installer
|
| Software Features |
Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Operating System Support |
Microsoft Windows® 10 64-bit / 11 64-bit
|
| Package Contents |
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
|
| Warranty |
3Y
|
