| Brand |
GIGABYTE |
| Model |

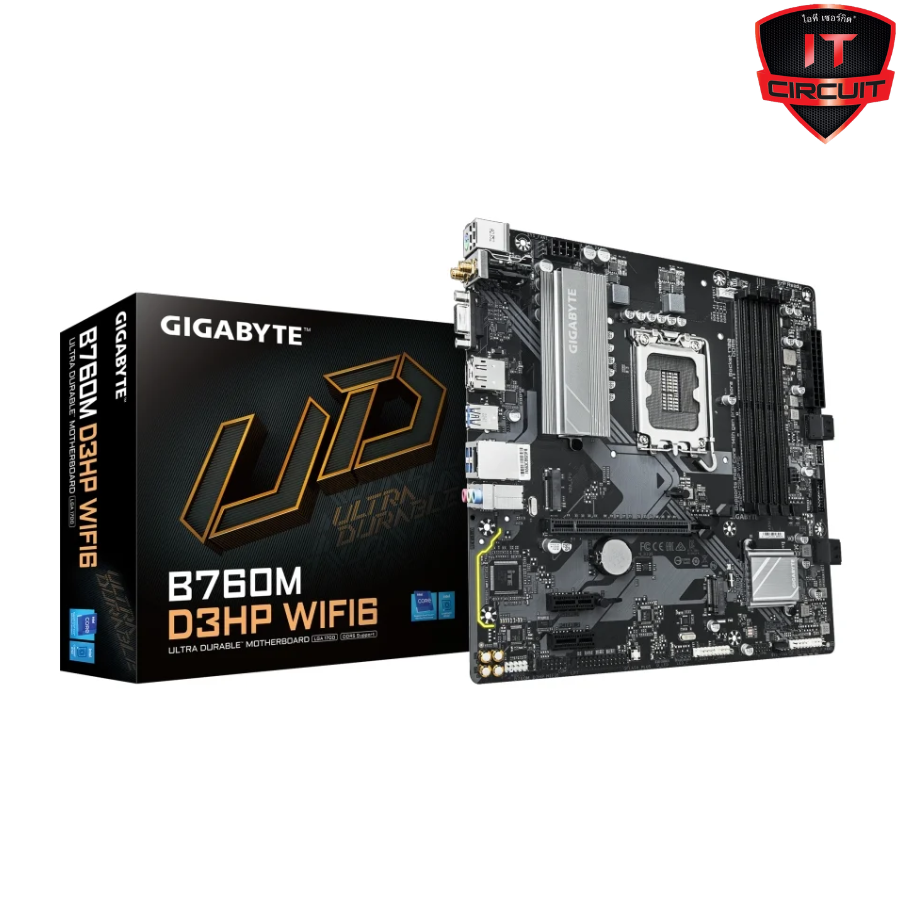

B760M D3HP WIFI6 (rev. 1.0) (DDR5)
|
| CPU Support |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
|
| CPU Brand |
Intel
|
| Socket |
1700
|
| Chipset |
Intel B760
|
| Memory Support |
14th and 13th Generation Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
|
| Maximum Memory Bus |
7600
|
| Graphics |
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
|
| Multi Graphic Support |
N/A
|
| Audio |
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
|
| Expansion Slots |
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
|
| Maximum PCIe Version |
PCIe 4.0
|
| Storage |
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
| M.2 Storage Type Support |
NVMe
|
| M.2 Slot |
2
|
| USB |
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
|
| Internal I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
|
| Back Panel Connectors |
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x D-Sub port*
1 x DisplayPort*
1 x HDMI port*
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
* Actual support may vary by CPU
|
| LAN |
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
|
| Wireless Data Network |
Realtek® Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
|
| Form Factor |
Micro ATX
|
| H/W Monitoring |
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install
|
| BIOS |
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Special Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
|
| Software Features |
Norton® Internet Security (OEM version)
LAN bandwidth management software
|
| Operating System Support |
Support for Windows 11 64-bit
Support for Windows 10 64-bit
|
| Package Contents |
N/A
|
| Warranty |
3Y
|
