| Brand |
MSI |
| Model |

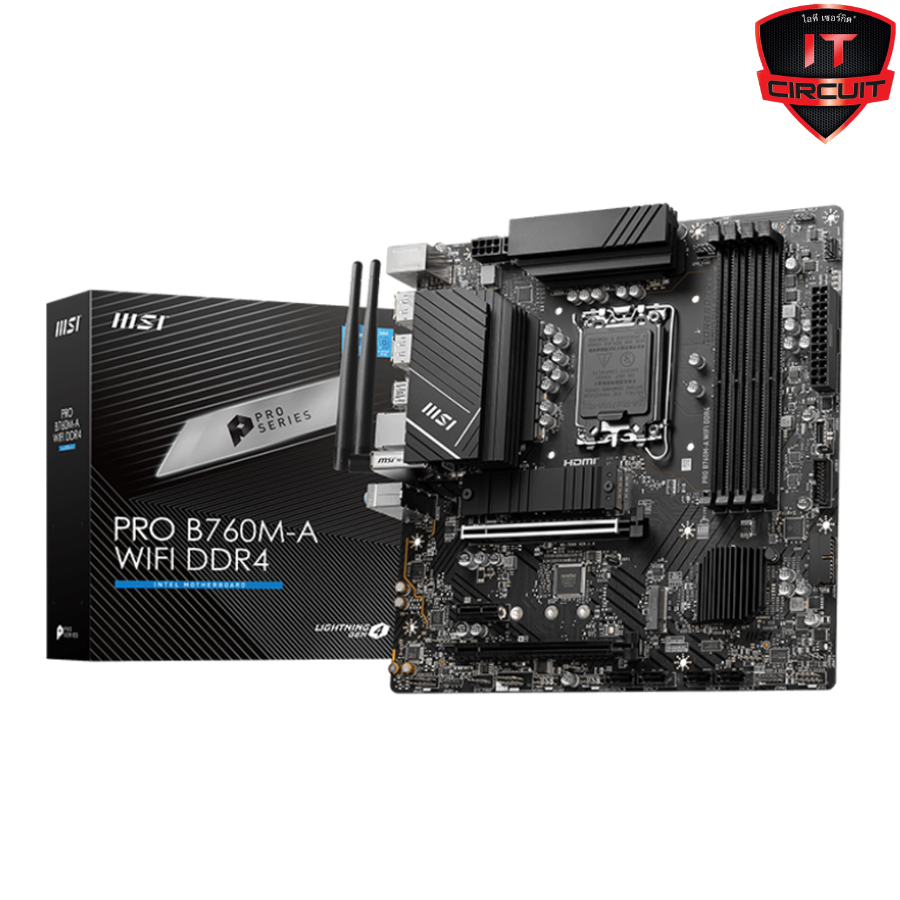

PRO B760M-A WIFI (DDR4)
|
| CPU Support |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
|
| CPU Brand |
Intel
|
| Socket |
1700
|
| Chipset |
Intel B760
|
| Memory Support |
4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(JEDEC)/ 4266(JEDEC)/ 4200(JEDEC)/ 4000(JEDEC)/ 3800(JEDEC) / 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
|
| Maximum Memory Bus |
5333
|
| Graphics |
2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
| Multi Graphic Support |
N/A
|
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
| Expansion Slots |
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
| Maximum PCIe Version |
PCIe 4.0
|
| Storage |
2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
|
| M.2 Storage Type Support |
NVMe, SATA
|
| M.2 Slot |
2
|
| USB |
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
|
| Internal I/O Connectors |
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x Pump Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
2 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 5Gbps Type C ports
|
| Back Panel Connectors |
1 x Keyboard / Mouse
2 x USB 2.0
2 x USB 3.2 Gen 1 5Gbps (Type-A)
2 x USB 3.2 Gen 2 10Gbps (Type-A)
2 x DisplayPort
2 x HDMI™
1 x 2.5G LAN
Audio Connectors
|
| LAN |
Realtek® RTL8125BG 2.5G LAN
|
| Wireless Data Network |
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
|
| Form Factor |
Micro ATX
|
| H/W Monitoring |
N/A
|
| BIOS |
N/A
|
| Special Features |
LED FEATURE 4x EZ Debug LED
|
| Software Features |
N/A
|
| Operating System Support |
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
| Package Contents |
2 x M.2 Screw
SATA Cable
WI-FI Antenna
I/O Shield
|
| Package Dimension |
(W x D x H) 27.5 x 29 x 5 cm |
| Gross Weight |
1.2 KG |
| Volume |
3987.50 cm3 |
| Warranty |
3Y |
