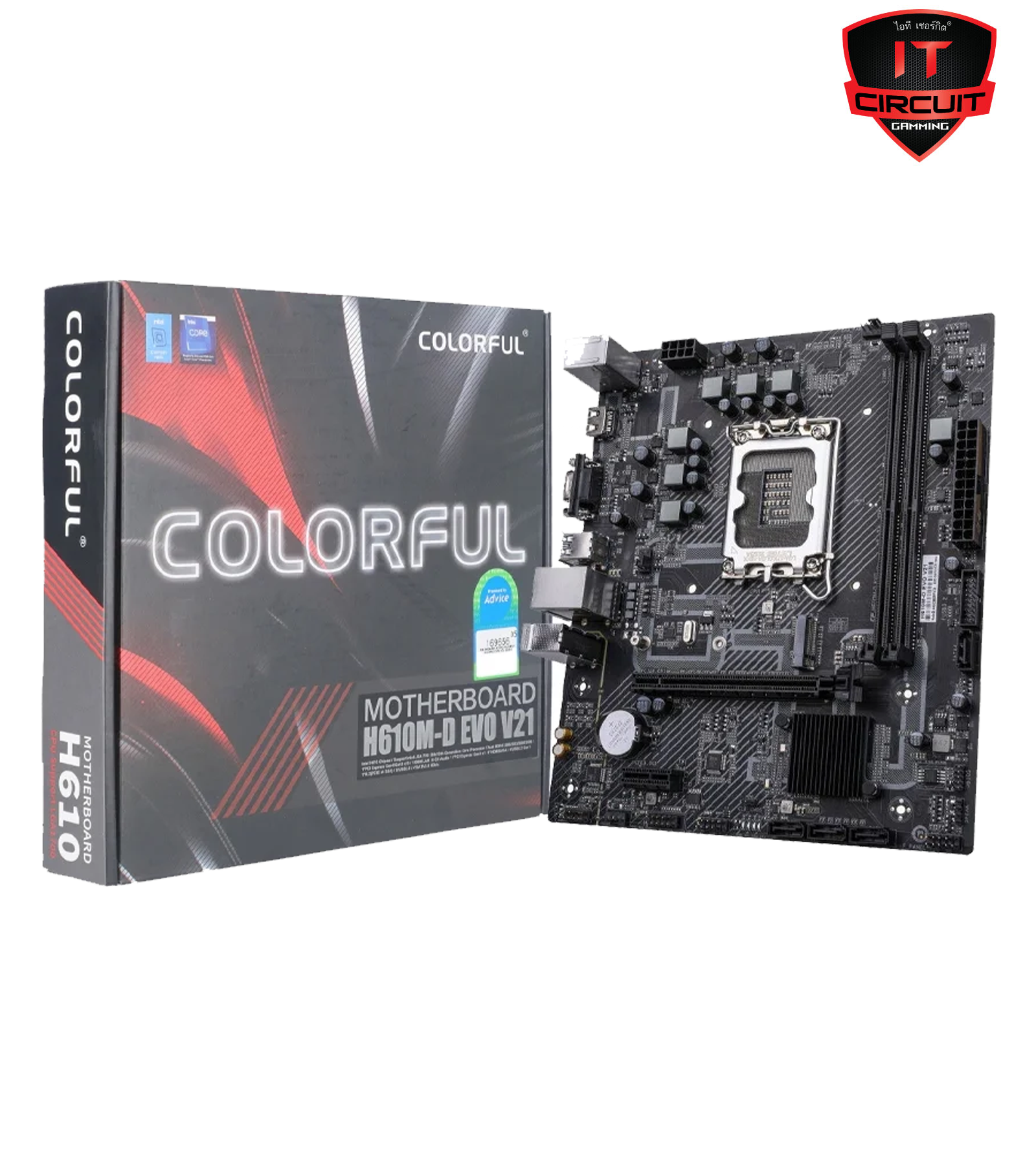

MAINBOARD (เมนบอร์ด) COLORFUL H610M-D EVO V21 DDR4

H610M-D EVO V21 DDR4

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor

(* Please visit www.colorful.cn for the latest memory compatibility list)

Intel

1700

Intel H610

2 DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory)

- Support DDR4-3200/2933/2666/2400MHz memory
- Supports dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

3200

1 x HDMI 2.0 interface, supports up to 4K 60Hz resolution
1 x VGA interface

None

Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot

PCIe 4.0

1 x M.2 slot
- M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4, PCH channel)

4 x SATA 6Gb/s hard disk interfaces

NVMe

1

Rear I/O:
4 x USB 2.0 interfaces
2 x USB 3.2 Gen 1 Type-A interfaces

On board:
1 x USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces

1 x CPU fan pin
2 x System fan pins
1 x USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces
1 x Front audio pin
1 x Front panel pin
1 x Speaker pin
1 x COM port pin
1 x Clear CMOS jumper
1 x BIOS burner pin

1 x PS/2 interface
4 x USB 2.0 interfaces
2 x USB 3.2 Gen 1 Type-A interfaces
1 x HDMI 2.0 interface, supports up to 4K 60Hz resolution
1 x VGA interface
1 x Gigabit network interface
3 x Audio interfaces (audio input/audio output/microphone)

1 x RTL8111H Gigabit Network Card

None

Micro ATX

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

128M UEFI, support multiple languages

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

N/A

Windows 11

N/A

3Y
