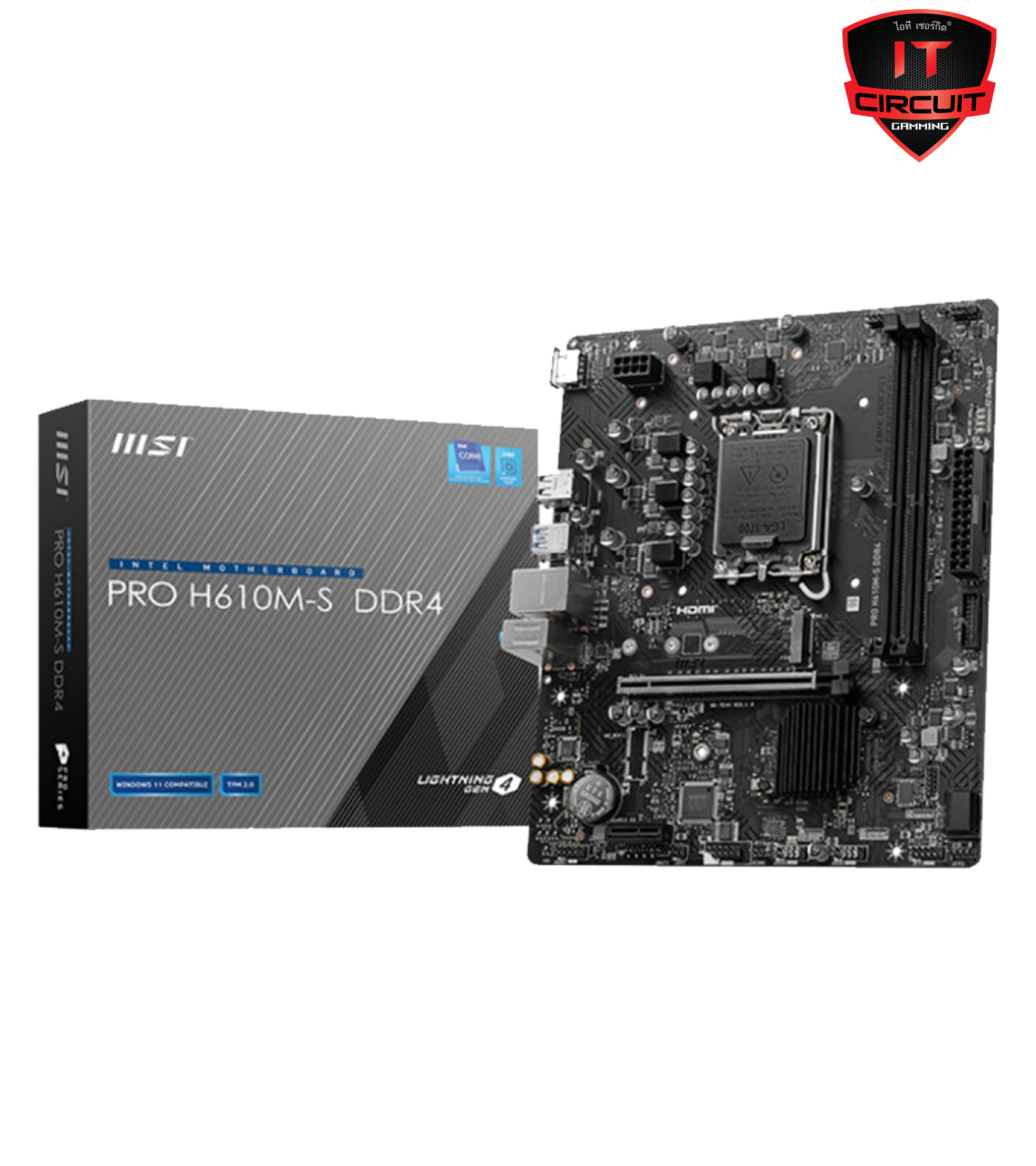

MAINBOARD (เมนบอร์ด) MSI PRO H610M-S DDR4 (INTEL SOCKET 1700 DDR4 MICRO-ATX)

PRO H610M-S DDR4

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

1700

Intel H610

2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

3200

1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

None

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

1 x PCI-E x16 slot
1 x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCIe 4.0

1 x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

2 x SATA 6G

NVMe

1

4 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
2 x USB 5Gbps Type A (Rear)
2 x USB 5Gbps Type A (Front)

1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports

1 x HDMI™
2 x USB 3.2 Gen 1 5Gbps (Type-A)
4 x USB 2.0
1 x LAN port
Audio Connectors

Realtek® RTL8111H Gigabit LAN

None

Micro ATX

N/A

N/A

LED FEATURE 4x EZ Debug LED

N/A

Support for Windows® 11 64-bit, Windows® 10 64-bit

N/A

3Y
